Injector - VSD Food Machinery

Basic functions

Injection from meat, fish and poultry.

Standard:

For boni-in and boneless products.

Optionally:

Zone injection
2-Way Injection.
Automatic brine rotation filter pool.
Siemens Touch Panel.

Loading Systems:

Tower loader, Belt loader.

Main features

Stainless steel construction.
Single pneumatic springed needles.
Available needle sizes Ø 4, 3 or 2,5 mm.
Easily removable needle system.
Steplessly adjustable drive from 15 - 55 stokes/min.
Stroke height 200 mm, optional 150 or 240 mm.
Stainless steel centrifugal pump steplessly adjustable 0,5 - 4 bar, optinal 6 bar.
Adjustable needle spring pressure.
Automatic brine stop of single needles at bone contact.
Beam walk speed per stroke 30 - 60 mm / 42 -84 mm, mechanically adjustable.
Needle and transport system easily removable.

Type

Type
	Length	Width	Height	Weight	Working Width	Stroke height

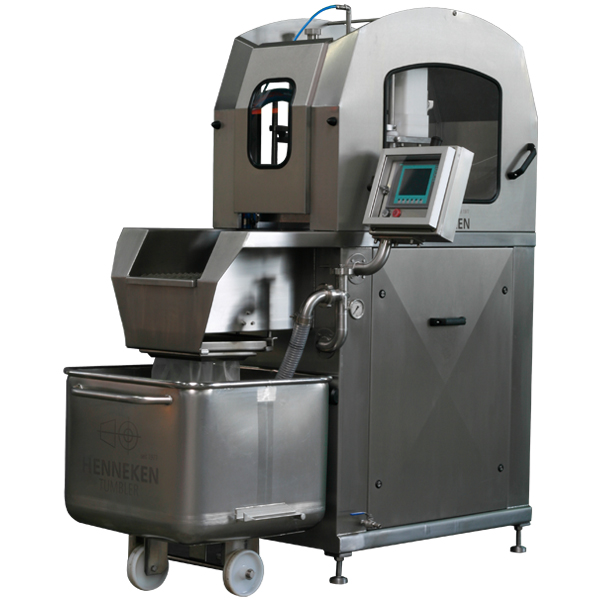

HPI 350	1630 mm	730 mm	1920 mm	420 kg	350 mm	200 mm
HPI 450	1930 mm	890 mm	2080 mm	575 kg	450 mm	200 mm

Type
	Brine pressure	Stroke speed	Power	Injection hour	Air pressure	Electrical connection
HPI 350	0,5 - 4 bar	15-55 Stroke /min	6,5 kW	max. 70 M²/h.	min. 6 bar	3 x 400V, 50 Hz.
HPI 450	0,5 - 4 bar	15-55 Stroke /min	8,5 kW	max. 125m²/h.	min. 6 bar	3 x 400V, 50 Hz.
