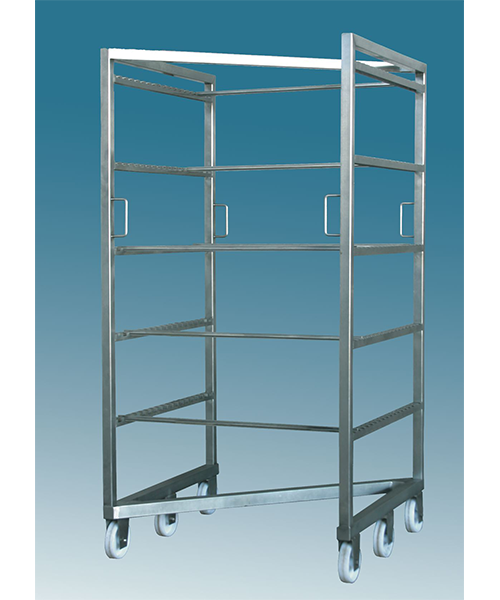

Smoke trolley H-Model, type RW-ST/ Z.

Loading capacity:

Up till 500 Kg.

Basic functions:

Z-Model = space-saving storage.
6-floors.
Floor-clearance 270 mm.
Suitable for smoke sticks.
Suitable for grids.

Main features:

Stainless steel construction.
Proper welded and stained frame-construction.
Solid frame –construction.
Open wheel-case.
6 wheels made of polyamide (D=150 mm), plain bearing,
middle wheels with breakdown torque.
Wheel temperature till 80°C.
Wide choice of different layer types available.
Layer in H-form type 5 for 900 mm resp 1000 mm long smoke sticks or grids,
possible grid dimensions: 940 x 990 mm resp. 840 x 890 mm.
Layer Z-form type 4 for 900 mm resp. 1000 mm long smoke sticks

Measurements:

Type Z-Model Stick length Grid size Width Depth Height
RW-ST/Z   900 900 mm 840 x 890 mm 915 mm 900 mm 1950 mm
RW-ST/Z 1000 1000 mm 940 x 990 mm 1015 mm 1000 mm 1950 mm

Optionally:

Loading capacity up till 700 Kg.
Closed wheel case
Wheels with roll-and ball bearing.
Layer type on request.
Floor and ground clearance on request.
Higher loading capacity on request.
Heat-resistant wheels 80°C, 130°C or 270°C.
