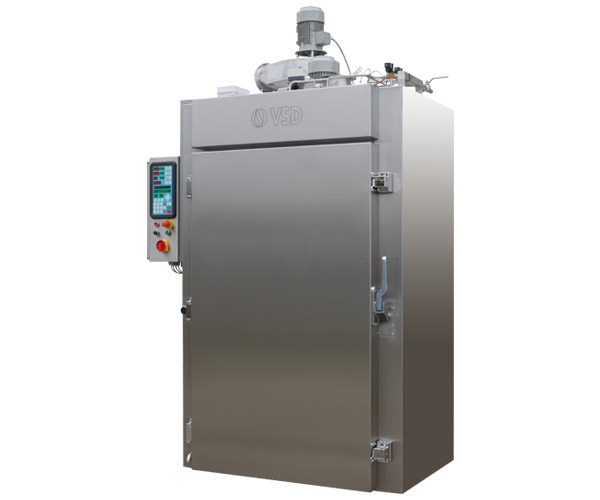

Compact series C 18 - 25 -50 - 75 - 100 multi purpose

Basic functions

Cooking - Drying - Smoking - Roasting

Main features

Temperature up to 160 °C (steam 120 °C)
Suitable for all kind of smoke methods
Closed smoke system CSS (option)
Vertical airflow
Relative humidity control
Door with 2 opening positions
Automatic door opening (option)
Automatic build-in shower (option)
Automatic build-in CIP
Automatic water level control
Full stainless steel construction
High quality insulation
Integrated rid-in system ( No ramps)
Computer controlled
Prepared for registration system

Humidity by

  Unit 1-Butcher 1-trolley 2 trolleys 3 trolleys 4 trolleys
Low presure steam by cooking (0,5 bar) kg/h 24 (NW25) 40 (NW32) 80 (NW32) 120 (NW32) 150 (NW32)
Water injection by cocking  (3 bar) ltr/h 24 40 50 70 85

Total electric consumption

  Unit 1-Butcher 1-trolley 2 trolleys 3 trolleys 4 trolleys
Electric heated kW 19,8 31,2 53,2 73,5 86,5
Gas heated kW 1,8 2,6 4,6 7,5 11,5
High pressure steam kg/h 1,8 2,6 4,6 7,5 11,5

Technical data

  Unit 1-Butcher 1-trolley 2 trolleys 3 trolleys 4 trolleys
Electrical kW 1,8 2,6 4,6 7,5 11,5
Compressed air ( 6 bar) m³/h 2,5 2,5 2,5 2,5 2,5
Water consumption showering (3 bar) m³/h 0,5 0,7 2,2 2,9 3,6
Water consumption CIP (3 bar) m³/h 0,5 0,7 2,2 2,9 3,6
process air intake Ø mm 130 150 2x 150 3x 150 4x 150
Process air outlet Ø mm 130 150 250 300 300
Flue (only gas heated) Ø mm 150 150 150 150 150
Pressure relief valve (only by steam) Ø mm 50 50 50 50 50
Computer control MIC 2420 2420 2420 2420 2420

Heating systems

  Unit 1-Butcher 1-trolley 2 trolleys 3 trolleys 4 trolleys
Heating capacity kcal 12960 21600 54000 75600 97200
Electric kW 18 28,6 48,6 66 75
Burner (natural- and liquid gas kW 18 30 60 90 120
High pressure steam (6 bar) kg/h 30 (NW15) 50 (NW15) 100 (NW15) 140 (NW20) 180 (NW25)
Oil kg/h 1,5 2,5 5,4 7,5 9,7

Dimensions

Dimensions outside Unit 1-Butcher 1-trolley 2 trolleys 3 trolleys 4 trolleys
Length mm 1050 1250 2400 3550 4700
Width mm 1250 1450 1450 1450 1450
Height (excl. technical fittings) mm 2050 2500 2500 2500 2500
Height (incl. technical fittings) mm 2450 2900 2900 2900 2900
Recommended room height mm 3450 3900 3900 3900 3900
Extra length by walkthrough execution Each extra section + 1150 mm mm   100 100 100 100
Dimensions inside
Length mm 890 1090 2240 3390 4540
Width mm 1130 1330 1330 1330 1300
Height mm 1570 2020 2020 2020 2020
Doorway dimensions
Width mm 1000 1200 1200 1200 1200
Height mm 1570 2020 2020 2020 2020
