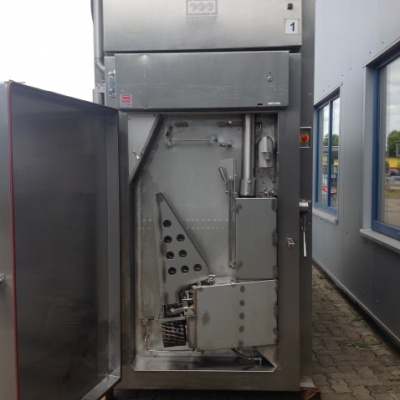

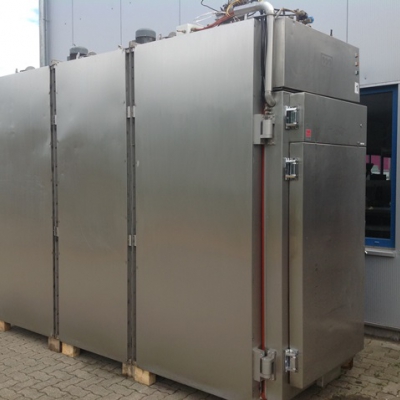

Maurer ASR 3637

Basic functions

Cooking, Drying, Smoking, Roasting

Main features

High presure steam heated
Temperature up to 110°C
Suitable for friction smoke
Closed smoke system CSS (option)
Vertical airflow
Relative humidity control
Relative humidity by waterbath
Water drain by siphon
Automatic build-in shower
Automatic built-in CIP
Automatic water level control
Full stainless steel heavy contruction
High quality insulation
Integrated rid-in system (no ramps)
Computer controlled
Prepared for registration system

Technical data

Electrical	kW	10
Compressed air ( 6 bar)	m³/h	2,5
Water consumption showering (3 bar)	m³/h	4,3
Water consumption CIP (3 bar)	m³/h	4,3
process air intake	Ø mm	150
Process air outlet	Ø mm	150
Computer control	Maurer
